22xx Parts
Seldom has so much been offered by so many for a series of airguns. Efforts of individuals, groups, shops, etc., on drawing tables, work benches, in back rooms and machine shops have brought 100s of accessories to the airgun market. Modifications and theory began filling 22XX commutations. Port, polish, cut, lengthen, slot, reduce, and enlarge are a few of the terms used.
Custom features for the 22XX series are as numerous as the number of people willing to create his personal airgun. Grips, breeches, barrels, adjustable sears, trigger over travel stops, sights, scopes, stocks, forearms, bulk-fill caps, extension tubes, adjustable power screws, reinforcement valve screws are some of the frequent modifications that are done or obtained by the shooter.
|
BOSS Valves | ||
|
The BOSS valve offers reduced thread depth on the stem
guide, | ||
 |
||
|

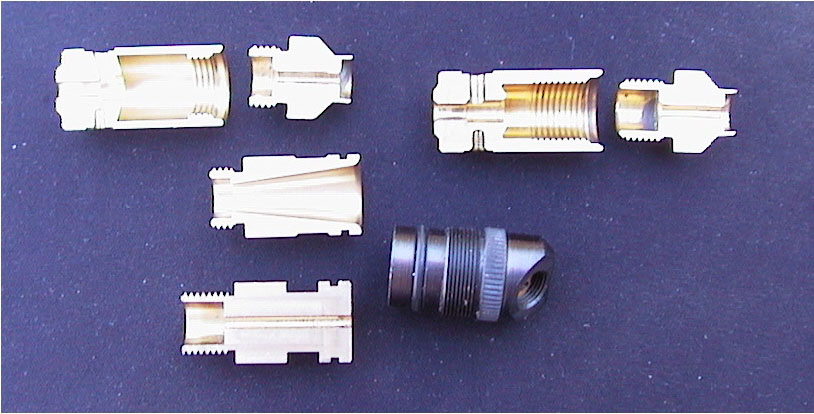

VALVE Comparison | ||
| Top left: | The Boss valve body and modified stem guide. | |
| Center left: | The Max-Flow Bulk-fill valve face. | |
| Lower left: | The economy Bulk-fill valve face. | |
| Upper right: | A standard valve body and stem guide. | |
| Lower right: | Bulk-Fill filling head with internal check valve & 1/8 NPT female port | |
| Picture | Description | Price |
 |

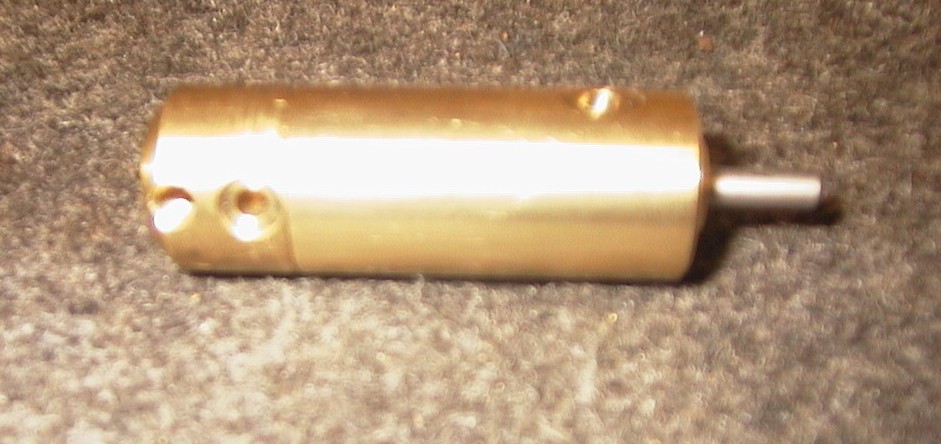

BOSS Valve: The Boss valve, modified stem guide & 12 gram CO2. The valve stem and valve spring are unmodified originals. For 2240, 2250B, 2260, 1760, 2300, 2400 |
$36.95 |
 |

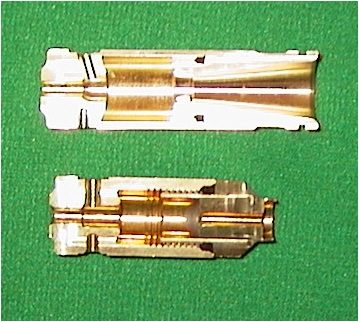

Max-Flow Valve: The Max-Flow valve face seals the tube allowing Bulk-Filling. The tapered passage directs the increased CO2 capacity directly to the Boss valve. A standard valve below for comparison. For 2240, 2250B, 2260, 1760, 2300, 2400 |
$45.95 |
 |
Bulk-Fill Valve: The Economy Bulk-Fill valve face pictured on a standard valve body
can also be used with the Boss valve. For 2240, 2250B, 2260, 1760, 2300, 2400 |
$32.95 |
 |
BOSS & Max-Flow System: The complete Boss & Max-Flow Bulk-Fill system with Filling
Head. The valve stem and valve spring are unmodified originals. For 2240,
2250B, 2260, 1760, 2300, 2400 |
$65.00 |
 |
BOSS Valve(2250): The BOSS AS
For the model AS 2250. The Air Source 2250 valve does not
exchange with the 22XX valve |
$39.95 |

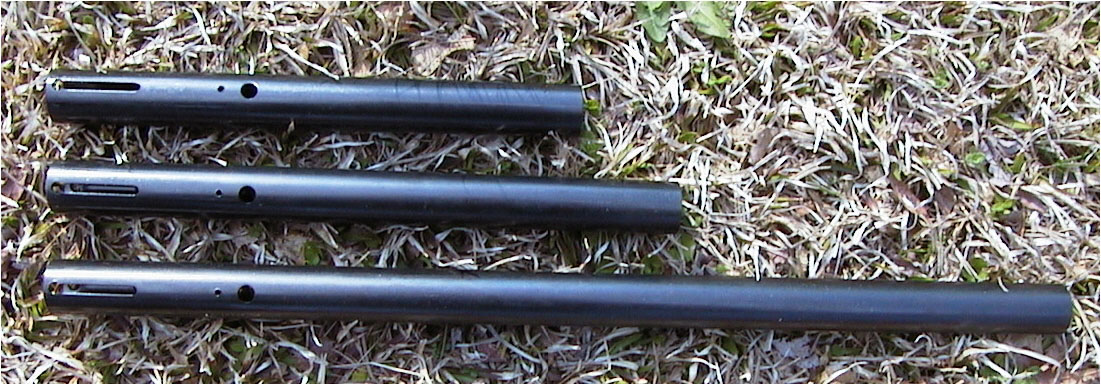

Tubes
| The Boss 12 gram, Max-Flow and Economy systems can be used with these Crosman tubes | ||
 |
Crosman 2240 Tube - 8 3/8" long | $10.75 |
| Crosman 2250B Tube - 9 7/8" long | $16.75 | |
| Crosman 2260 Tube - 16 5/8" long | $18.75 | |
|
|

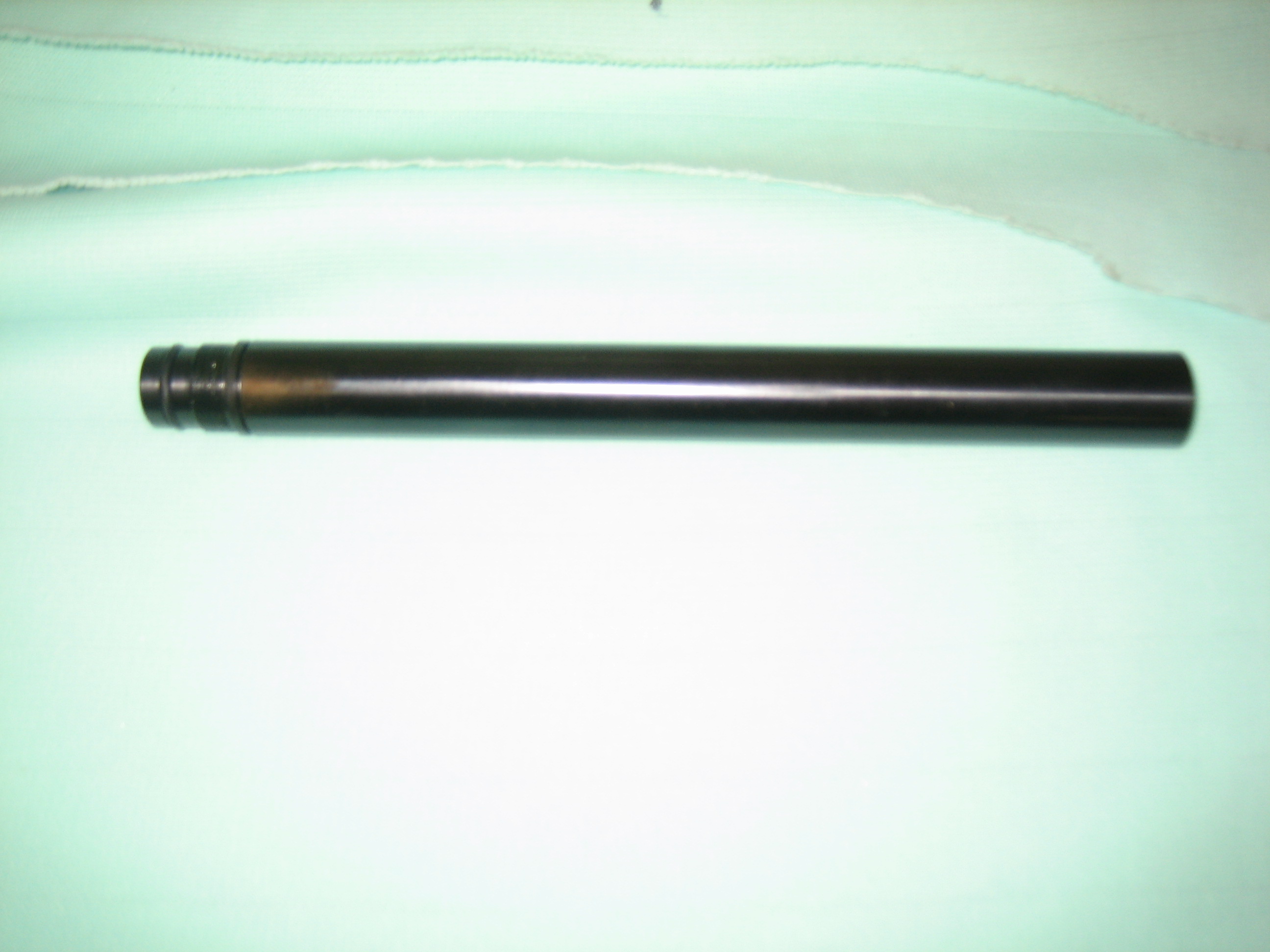

Crosman 2240-50-60 Extension Tube
Extends either of the above 8 3/8" for bulk-fill Extension tube with connector for early Crosman 160 and other models |
$32.95 |
Misc.
 |
Our
RISER .260
high, anodized black, allows use of a 1" barrel shroud. Can be used with BnA breeches, Crosman short or long breeches and others,
|
$28.00 |
 |
Aluminum, anodized black receivers. Scope rails. Flat rear sight slot . Two barrel set screws.
|
$36.50 |
|
Bolt Handle designed for the 22XX and 1377 also fits
other models |
$7.75 |
 |
Continuous Air: An early Crosman 150 frame supports the single ring paintball tank mount. CO2 is transmitted directly from the tank to the Boss valve by pressure hose. |
N/A |
 |

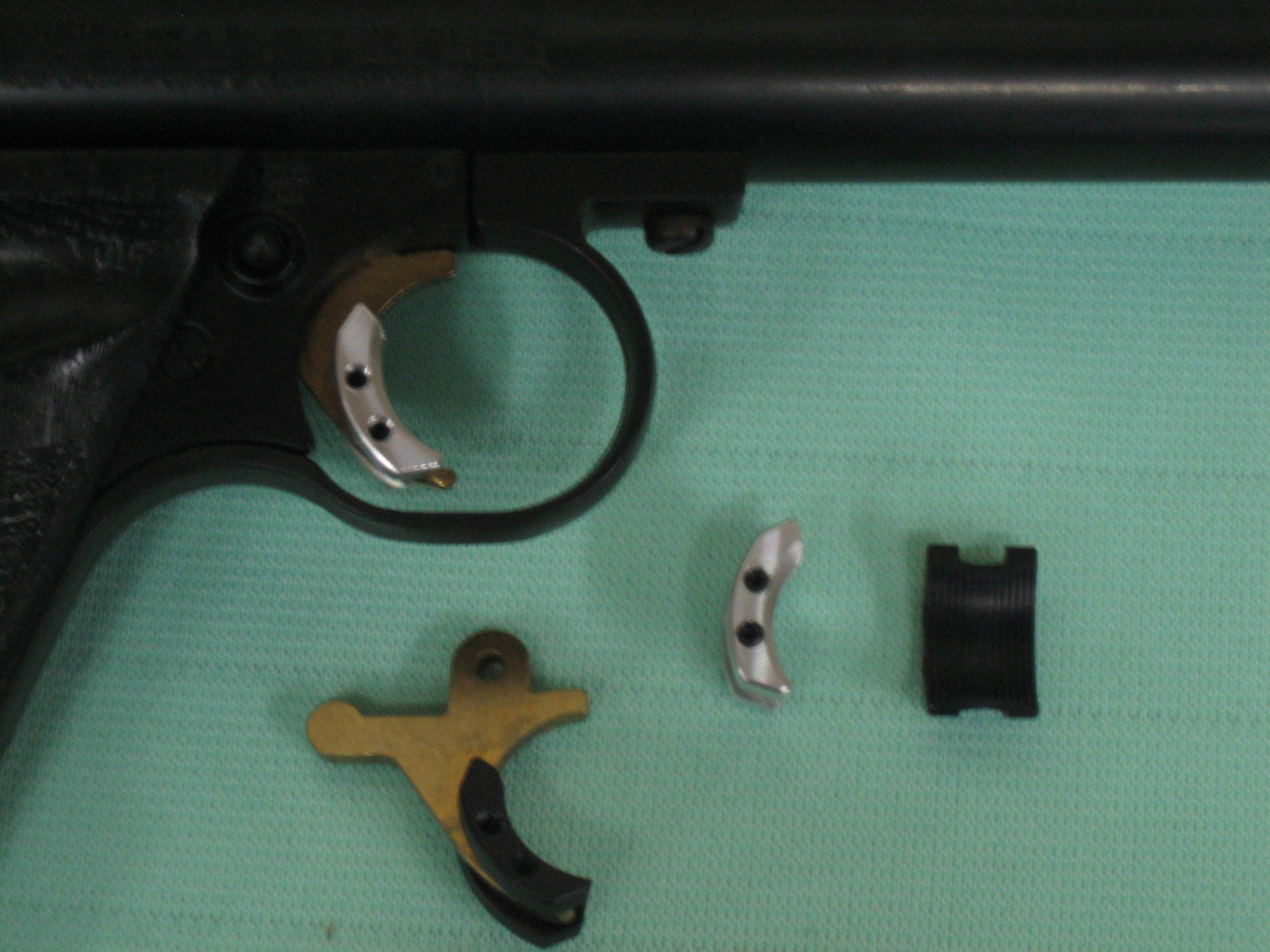

Trigger Shoes anodized Black or Silver Alum. | $9.95 |
| Barrel Prices |
Click here |

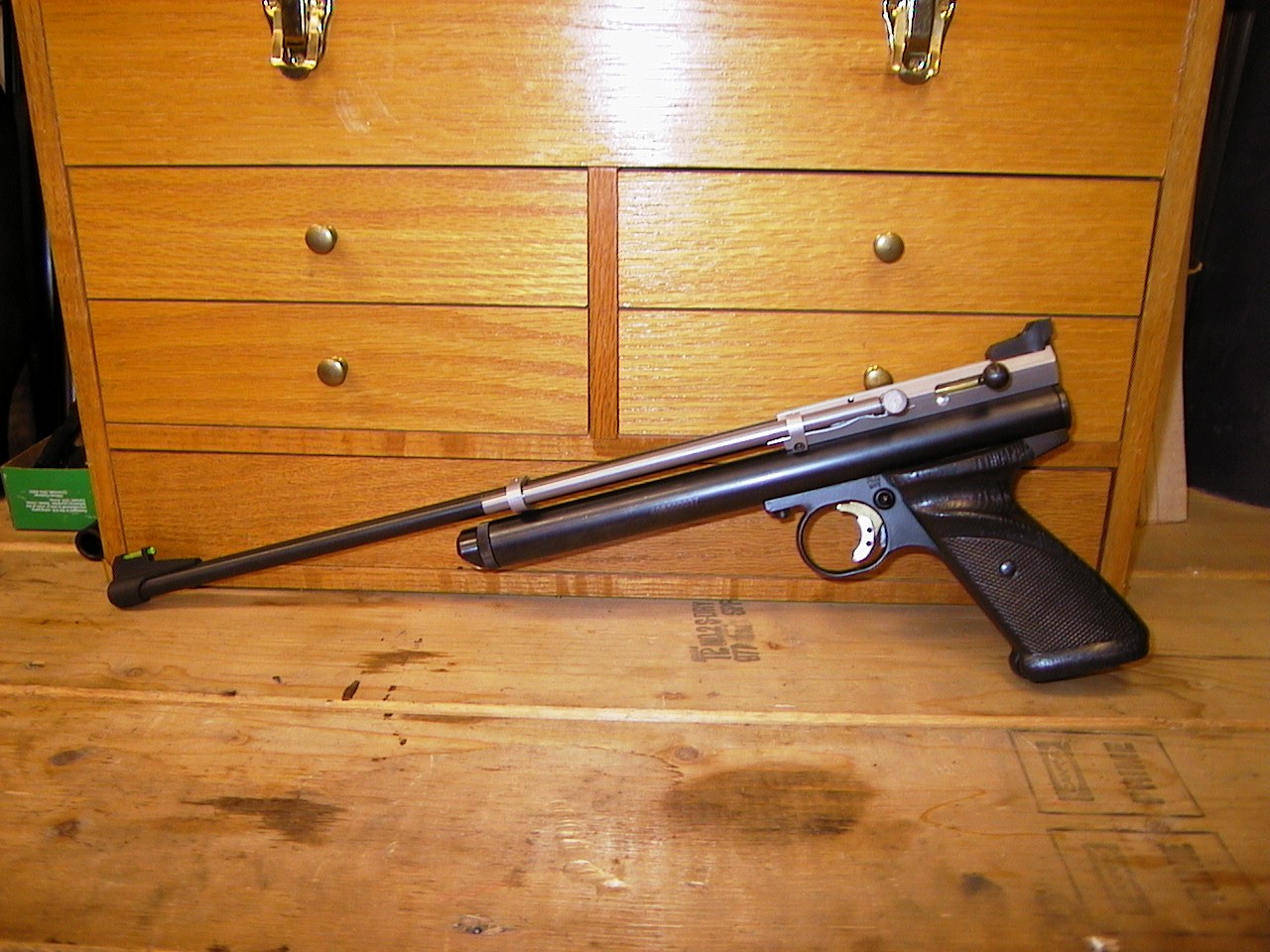

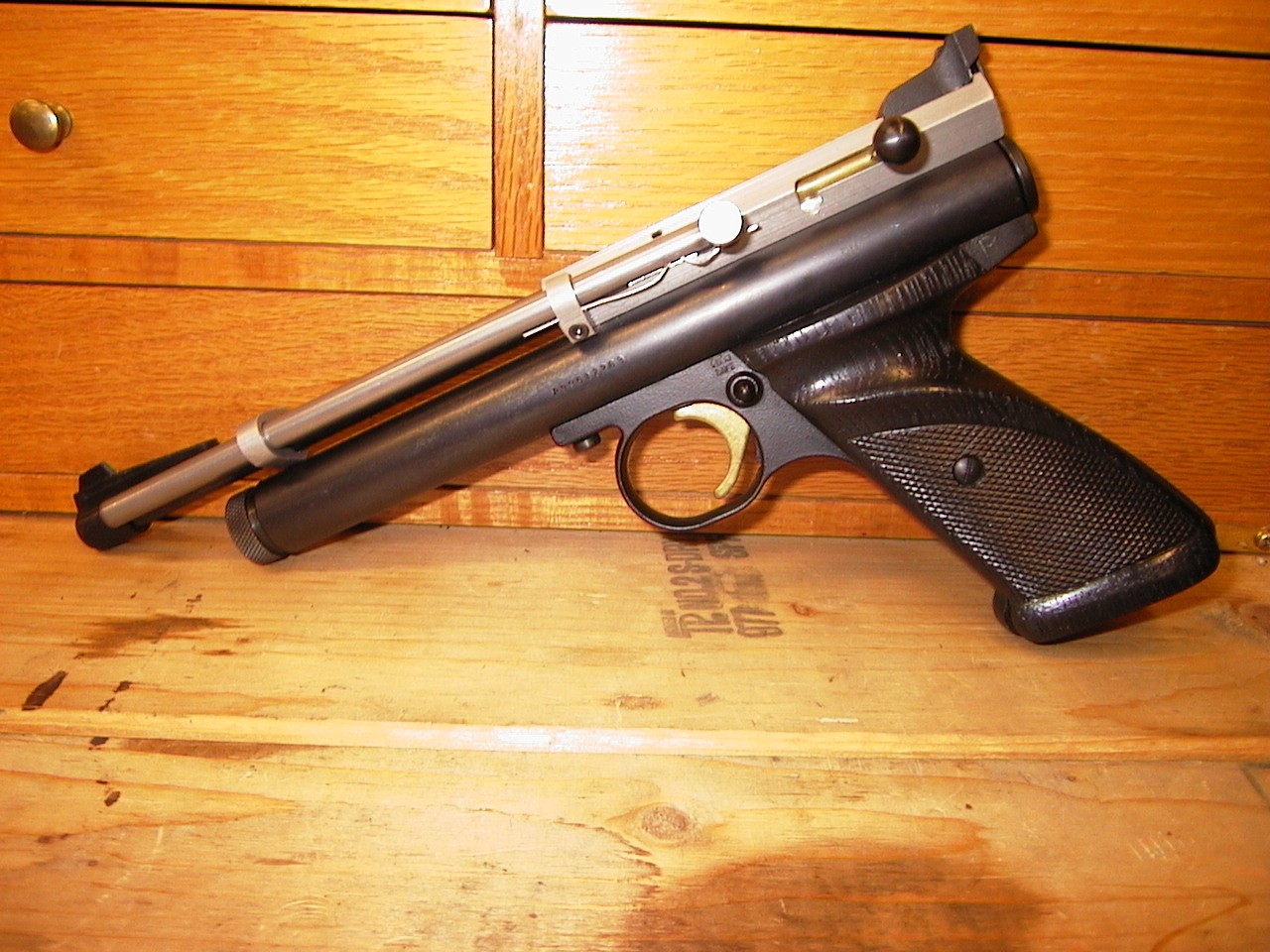

Repeater Breech
The BOSS Repeater breech has an in-line tubular magazine that hold 25 Crosman round nose pellets. Other pellets and pellet lengths my be used. Each hex. alum breech is dovetailed for a scope and is milled to allow use of the standard Crosman rear sight.
The BOSS repeater breech is available with the bolt and magazine on the left side, LH model, or with the bolt and magazine on the right side, RH model.
 |
 |
 |
BOSS Repeater breech, +/- 25 shot magazine, magazine support with bolt and custom bolt handle.
Not Available After November 2007
Operating Instructions
Remove the magazine end plug, insert pellets, skirt first,
in the magazine, replace the plug.
Open the bolt, push the loading slide to the loading position. The barrel should
be tilted slightly up. The
pellet stop holds the second pellet in the magazine allowing the rear pellet to
drop into the loading slide.
return the slide to the firing position, close the bolt. Aim and fire.
Not Available after Nov. 2007
